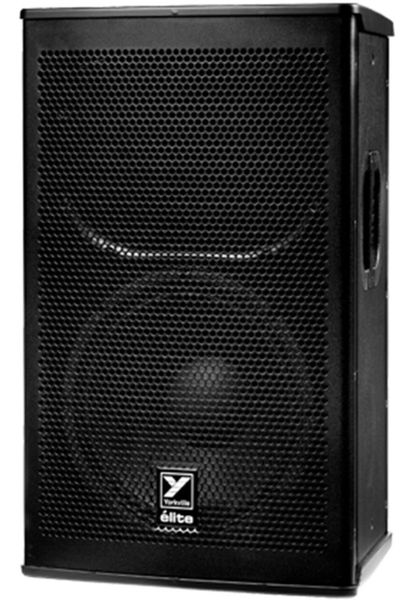

Yorkville EF12 Elite Series 600W 12" Passive Loudspeaker
$1,469.00
$1,049.00
- Specifications
- System Type Two Way
- Active or Passive Passive
- Power Rating (Watts) 600 Watts (1200 Watts Peak / 300 Watts Continuous)
- Biampable No
- Nominal Impedance (Ohms) 8
- Sensitivity (dB @1Watt/1m) 97
- Max SPL (dB) 128dB Peak (125dB Continuous)
- Frequency Response (Hz +/- 3dB) 55 - 18k
- Crossover Frequency (Hz) 1900
- Driver Configuration 12-inch, 3-inch Diaphragm
- HF Driver(s) 3-inch Voicecoil (Titanium Diaphragm)
- HF Horn ABS plastic custom Waveguide
- HF Dispersion (°H x °V) 60x40
- HF Protection 3xSK3 protection bulbs
- LF Driver(s) 12-inch (3-inch voicecoil)
- Inputs - 1/4" Jacks 2
- Inputs - Speakon 4-pin 2
- Bar Handles 2
- Flying Hardware 3/8-inch x 3 (2 Top, 1 Back)
- Pole Mount Adapter (1 3/8"-3.5cm) Yes
- Enclosure Materials 15mm (5/8inch) 11-ply Russian Birch
- Grille Perforated Metal
- Covering / Finish Black Ultrathane Paint
- Dimensions (DWH xbackW, inches) 14 x 16 x 25.5 x 9.5
- Dimensions (DWH xbackW, cm) 35.5 x 40.5 x 64.8 x 24
- Weight (lbs/kg) 51 lbs
